FoosTender

FoosTender is a robot goalkeeper that stops you from scoring in Foosball.

Introduction

In search of a project during our winter break from school, Alex Prucka and I designed and built FoosTender. When deciding what to build, we wanted a system that utilized computer vision and robotic control, and wanted it to be a high-performance system. We also wanted the project to be interactive with people. This led us to the idea of the foosball goaltender. Our design criteria were as follows:

  • The goalkeeper's reaction time should be fast enough to block any shot from the opponent
  • Design it such that no permanent modifications to the table are needed
  • Make the system fully integrated, needing only a single power cord and no laptop/desktop connections

Initial Design Phase

Our goal was to block a shot that an average human could make at maximum power. After some initial testing, we found that the robot needed to see the ball's trajectory for at least 10 frames. This necessitated a camera which could shoot at ~240 fps. We initially chose a cheap webcam advertised as 640x480 260fps (something we would quickly come to regret). Below is a slow-mo video of a very fast shot.

  • Use the Raspberry Pi 4B as the main controller and vision processor, as handling footage at 240 FPS requires far more processing than any smaller microcontroller can handle, yet we wanted the system to be fully integrated and not require a desktop/laptop to run.

  • The player bar weighed in at 1.5 Kg. In order to accelerate fast enough to block powerful shots, a large stepper was required. A 48v 1/2 horsepower stepper motor and driver was chosen for accuracy and strength.

  • We designed the robot so that it would not permanently alter anything about the foosball table. Clamps and form-fitting 3d prints were the main attachment methods.

We designed the system in OnShape, allowing for easy collaboration.

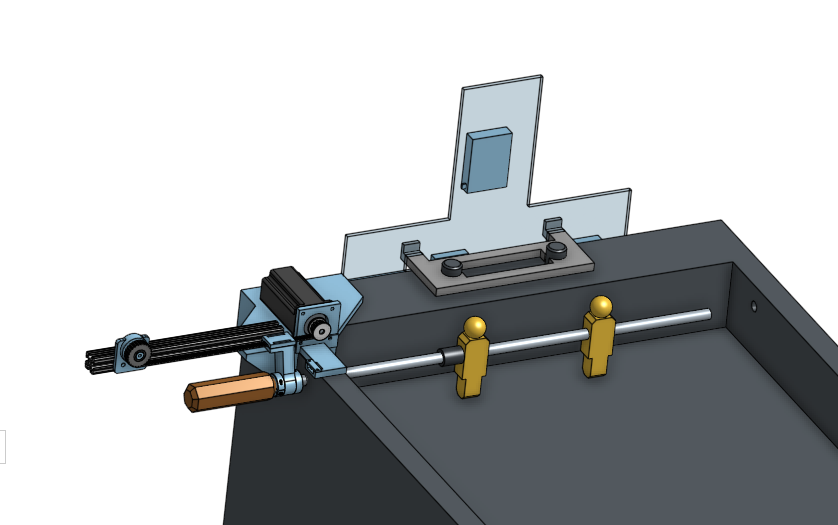

Shown above is the CAD of the robot from a front view. A 3d printed mounting bracket is clamped onto the table, and then aluminum extrusion and the stepper motor are mounted onto the bracket. A belt spans the length of the aluminum extrusion, and terminates on another 3d printed part which clamps onto the foosball table rod.

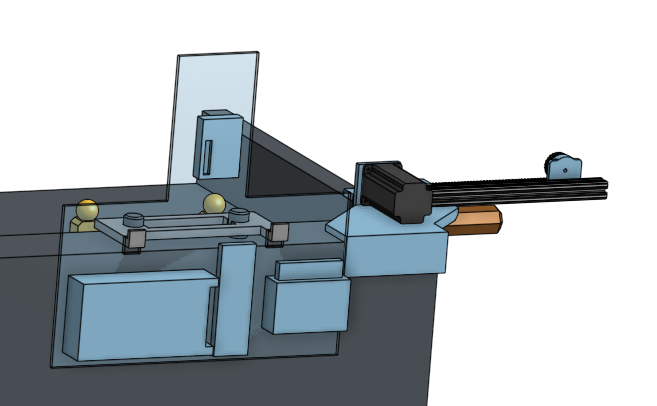

Here is the rear view of the CAD. A 3d printed bracket perfectly slides over the scorekeeping mechanism, and a sheet of Lexan is hung off of the bracket. The power supply, breadboard, stepper driver, and Raspberry Pi are all mounted to the lexan sheet.

Vision and Detection



  • Lighting. The computer vision system was significantly affected by factors such as the time of day and indoor lighting. We designed a “mask scanner” to find the best color settings which worked in most lighting conditions. We also used computer techniques such as Gaussian blurs to reduce variability.

  • Camera woes. The initial camera we purchased was old and terribly documented. Driver and software support were almost nonexistent. Getting it to play happily with linux was especially difficult. We quickly sent that camera back and opted for a Raspberry Pi Cam.

  • Raspi Cam Issues. The initial camera we purchased was faulty and would not function. The next camera we purchased functioned, but the software support was not nearly as thorough as expected. There were enormous issues with older software that no longer functioned, particularly with the recent OS update that Raspberry Pi released. This highlighted some of the challenges with open-source software.

  • Image mapping. Due to camera woes and limited software, an intense crop was necessary to achieve a high framerate. This meant that the camera needed to be mounted far above and behind the table. As a result, camera positioning became somewhat variable. Contours were analyzed to find the bottom bar, which is of known length. Using linear algebra and scaling methods, the ball’s pixel position can be mapped to a distance and passed to the servo.

  • Processing speeds. The Raspberry Pi 4 remains a micro-computer with little processing power. Initial algorithms were computationally heavy, resulting in very delayed tracking as seen below. We also tested to find the optimal shutter config and pulled from the “lores” (low-res) channel.

Stepper Control

In order to control the stepper motor a direction pin is set high or low, and then pulses are sent to the "step" pin in order to make it move. Each pulse moves the shaft of the motor an amount determined by the microstep setting chosen with switches on the stepper driver. The speed of the motor is determined by the frequency of the pulses sent to the controller.

In order to send high frequency, consistent pulse trains without significant computational OS overhead, we used a library called pigpio. Pigpio uses a daemon in the background that controls certain PWM pins.

When sending a predefined motion pattern, much like how you would control a 3D printer, the stepper control worked flawlessly. It was very smooth, and relatively easy to program acceleration and deceleration curves to hit high speeds in a controlled manner. However, the key word here is "predefined". Creating a foosball goalie inherently means each motion is not predefined. The desired target location updates 240 times a second. Once you have sent a set of pulses to the pigpio daemon, you cannot cancel the wave. This means you must send very small waves, and constantly see which direction the waves must travel. This video shows the jerky, step-based motion.

This issue above turned out to be the biggest fundamental flaw, and was the thing that holds this project back from true success at the moment. It became clear after many hours attempting different control mechanisms with the stepper motor, that it is impossible to get smooth, accurate, rapidly updating positional tracking. The correct tool for the job is a DC motor with an encoder, and a positional PID tracking the location of the ball. With more time, or next time we return to the project, this will be the proper solution. This particular aspect was difficult, frustrating, and a learning experience that will not be forgotten.

Future Improvements

  • Running a stepper control algorithm with a fleshed out set of control functions on a micro controller would be far more effective. Likely even better would be ditching the stepper as a concept, and instead using a large DC motor and encoder, and tuning a PID position controlled loop to automatically handle acceleration, and allow for rapid parameter tuning.

  • Better implementation of multi-threading. Tests indicate that the python library was not “multi-threading” as we expected. This issue would likely be fixed with the use of ROS.

  • A torsional spring system to return the keeper to a vertical position after perturbation. A button to disable the servo is needed so that the user can operate the goalkeeper as normal.

  • Utilizing an available robotics software suite such as ROS would be a far better use of time, resulting in better performance for less effort.

  • Designing the system to not modify the table was a fun challenge, and very feasible especially if more time was given. However in order to build the best robot in a limited time, table modification would be essential and allow the robot to look and perform far better.
